Kia EV6: Components and Components Location

Component

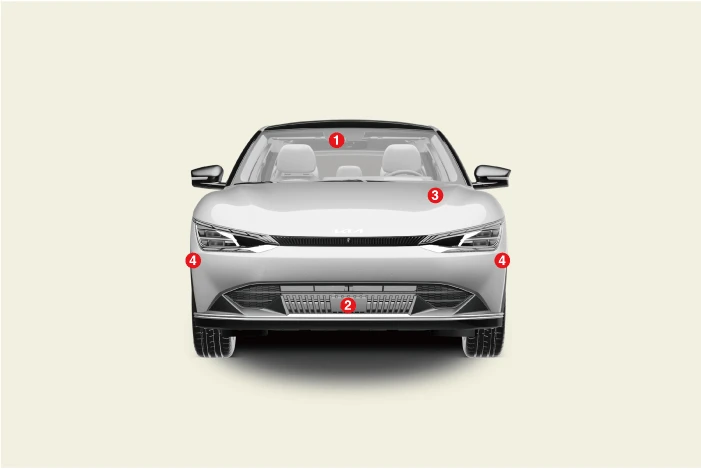

[Front]

Kia EV6. Components and Components Location

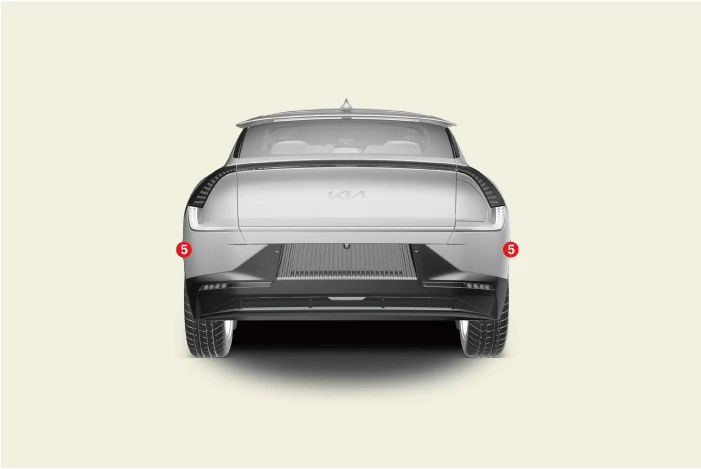

[Rear]

Kia EV6. Components and Components Location

1. Front View Camera
2. Front Radar
3. ADAS Driving ECU
4. Front Corner Radar
5. Rear Corner Radar
