Kia EV6: Front Dust Cover

Removal

1.Remove the front brake disc.(Refer to Brake System - "Front Brake Disc")

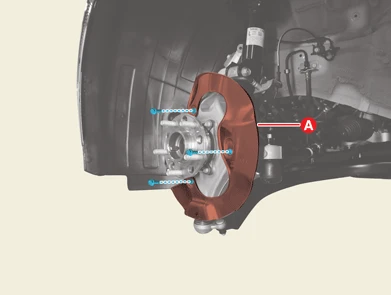

2.Remove the front dust cover (A) after removing the bolts.

Tightening torque :6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8 lb·ft)

Kia EV6. Front Dust Cover

Installation

1.Install in the reverse order of removal.

Inspection

1.Check the dust cover for cracks.
