Kia EV6 (CV) 2022–2025 Workshop Manual

Cooling System / Motor and Reduction Gear Oil Cooler / Components and Components Location /

Kia EV6: Components and Components Location

Component Location

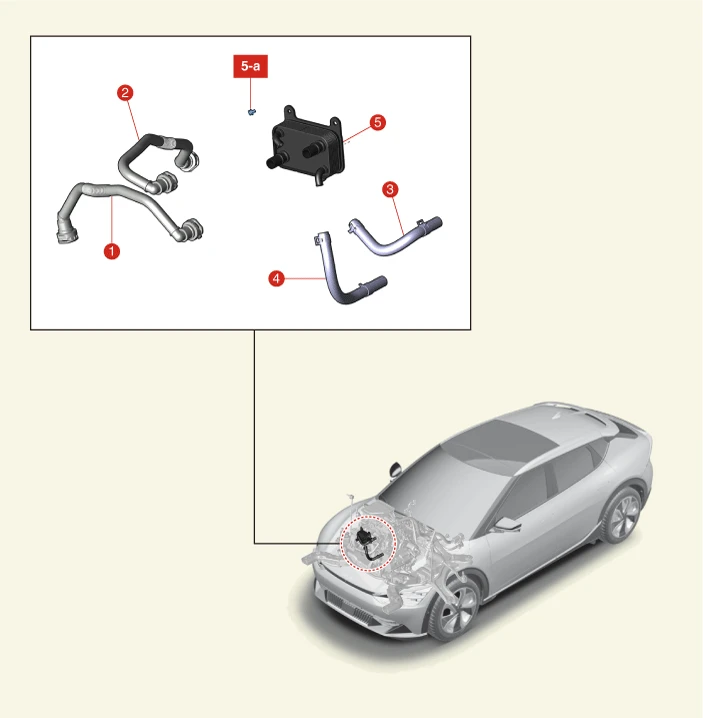

Front Motor

Kia EV6. Components and Components Location

1. Motor and Reduction Gear Oil Cooler Coolant Hose
2. Motor and Reduction Gear Oil Cooler Coolant Hose
3. Motor and Reduction Gear Oil Cooler Oil Hose
4. Motor and Reduction Gear Oil Cooler Oil Hose
5. Front Motor and Reduction Gear Oil Cooler
5-a. 19.6 - 23.5 N·m (2.0 - 2.4 kgf·m, 14.5 - 17.4 lb·ft)

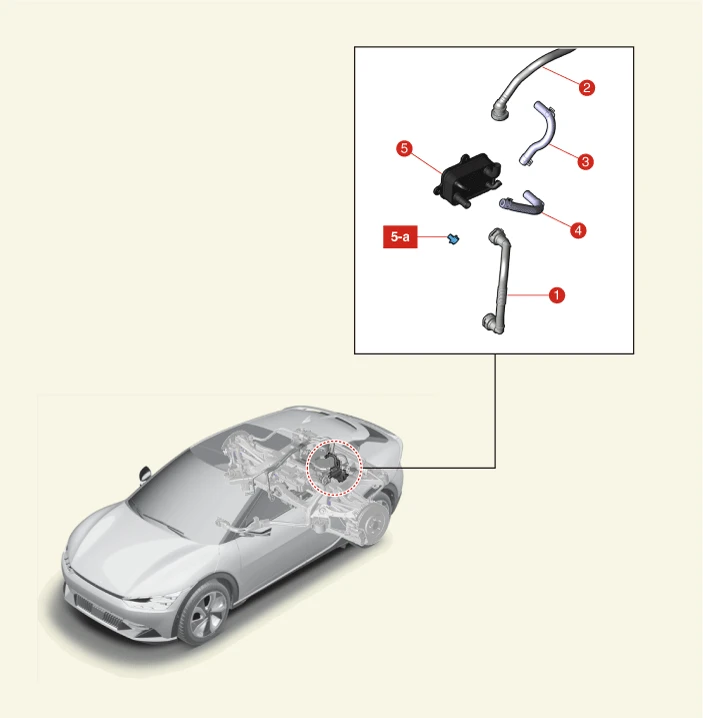

Rear Motor

Kia EV6. Components and Components Location

1. Motor and Reduction Gear Oil Cooler Coolant Hose
2. Motor and Reduction Gear Oil Cooler Coolant Hose
3. Motor and Reduction Gear Oil Cooler Oil Hose
4. Motor and Reduction Gear Oil Cooler Oil Hose
5. Rear Motor and Reduction Gear Oil Cooler
5-a. 19.6 - 23.5 N·m (2.0 - 2.4 kgf·m, 14.5 - 17.4 lb·ft)
