Kia EV6 (CV) 2022–2025 Workshop Manual

Cooling System / 3 Way Valve / Components and Components Location /

Kia EV6: Components and Components Location

Component Location

2WD

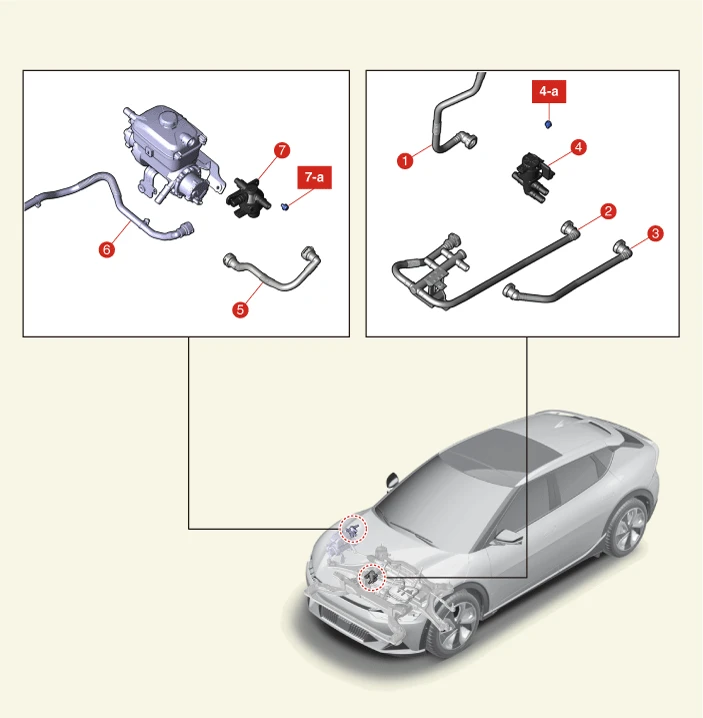

Kia EV6. Components and Components Location

1. 3 Way Valve Cooling Hose
2. 3 Way Valve Cooling Hose
3. 3 Way Valve Cooling Hose
4. 3 Way Valve
4-a. 19.6 - 23.5 N·m (2.0 - 2.4 kgf·m, 14.5 - 17.4 lb·ft)
5. 3 Way Valve Hose
6. 3 Way Valve Hose
7. Coolant 3 Way Valve
7-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

4WD

Kia EV6. Components and Components Location

1. 3 Way Valve Inlet Hose
2. 3 Way Valve Outlet Hose
3. 3 Way Valve Outlet Hose
4. 3 Way Valve
4-a. 19.6 - 23.5 N·m (2.0 - 2.4 kgf·m, 14.5 - 17.4 lb·ft)
5. 3 Way Valve Hose
6. 3 Way Valve Hose
7. Coolant 3 Way Valve
7-a. 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Specification

Specification Item Specification Operating Voltage (V) 9 - 16 Operating Current (A) Max 1.3 Operating condition (°C [°F]) ...

PREV

Description and Operation

Description and Operation It bypasses the coolant to the radiator when the heater pump is working to improve the heating performance of the heater pump.The electric actuator turns the ball valve ...
